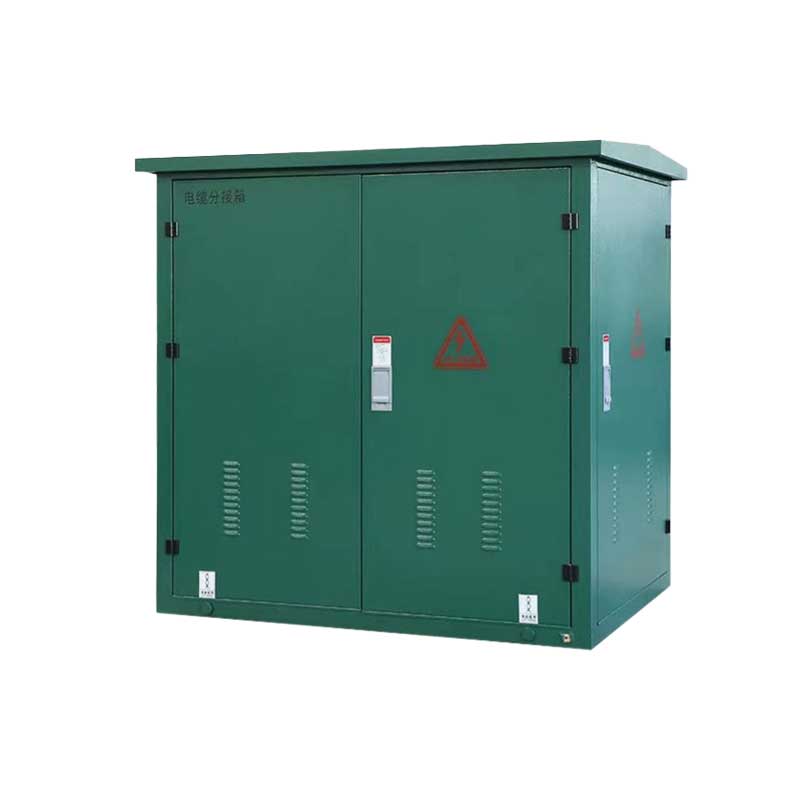

DFWK Cable Branch Box with Switches

The DFWK Cable Branch Box with Switches (12kV) is designed for urban and industrial cable networks. Featuring fully insulated and sealed construction, it integrates load break/isolating and earthing switches for sectionalizing, tie-in, and maintenance isolation. It offers easy installation, minimal maintenance, and reliable outdoor performance.

Get a Quote

Functional Features

1.Adopt prefabricated live and touchable silicone rubber cable heads, which are fully sealed, fully insulated, and maintenance-free, ensuring reliable personal safety;

2.Compact structure, small and beautiful appearance, double-layer box, with a service life of up to 20 years;

3.Without affecting the operation of the main network, achieve regional power outage maintenance and reduce the scope of power outages;

4.It can be equipped with one or more SF6 load switches. The wiring methods are flexible and diverse, and the branch line can reach up to 8 circuits;

5.optional arrester, short circuit fault indicator, limited viewership of fuses, etc., to meet the user’s requirements.

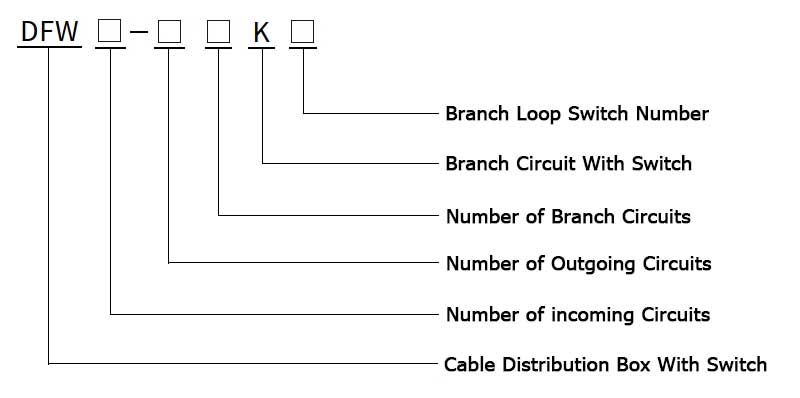

Model and meaning

dfwk-1



Technical Specification

ItemUnitParameters
Rated VoltagekV12
Rated CurrentA630
Power Frequency Withstand Voltage (phase ground)kV/min42
Lightning Impulse VoltagekV75
Rated Breaking CurrentA630
Rated Short-circuit Switching Current (peak)kA50
Rated Short-time Withstand CurrentkA/4s25
Rated Peak Withstand CurrentkA50
Rated Breaking Capacitor CurrentA45
Rated On-off Inductance Current16
Full Load Breaking TimesTimes>100
Number of Opening and Closing Mechanical Operations2000

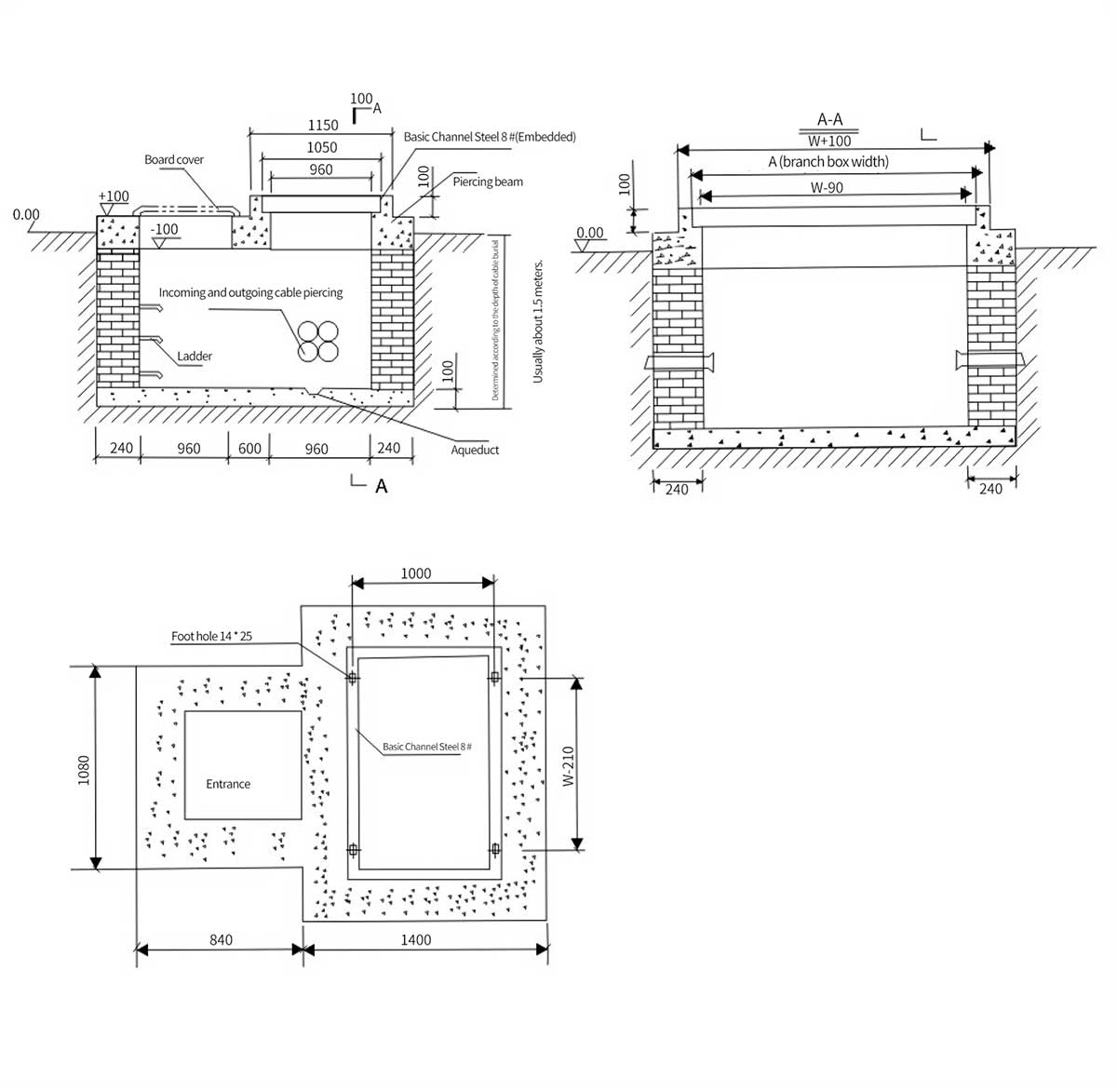

Foundation Diagram

dfwk-diagram
