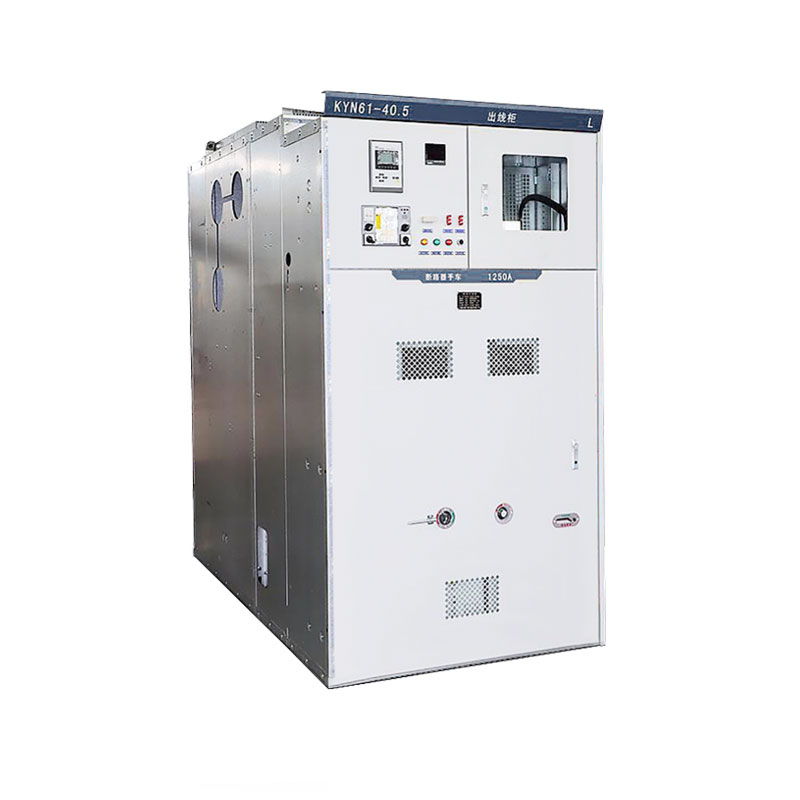

KYN61-40.5 Metal-enclosed Switchgear

KYN61-40.5 metal-enclosed switchgear (hereinafter referred to as switchgear) is a three-way intersecting flow rate of 50Hz,Indoor or set of power distribution devices with a precise voltage of 40.5kV. As a power plant. Transformer and industrial and mining enterprises receive and distribute electrical energy It can be used to control, protect and monitor the circuit, and can also be used for the av-erage field sequence strike of Yan Fan operation. This switchgear complies with GB3906-2006GB/T11022-1999 and DL/T404-2007 standards.

Get a Quote
KYN61-40.5 Metal-enclosed Switchgear.pdf

Operating Conditions

1. Ambient temperature: upper limit + 40°C, and the average value measured within 24 hours does not exceed 35°C, lower limit ‒10°C;

2. Altitude: ≤1000m;

3. Relative humidity: daily average 95%, monthly average 90%;

4. Seismic resistance: 8 magnitude;

5. Water vapor pressure: daily average value does not exceed 2.2 kPa, monthly average value does not exceed 1.8 kPa;

6. Surrounding environment: Places without fire, explosion hazards, severe pollution, chemical corrosion and severe vibration.

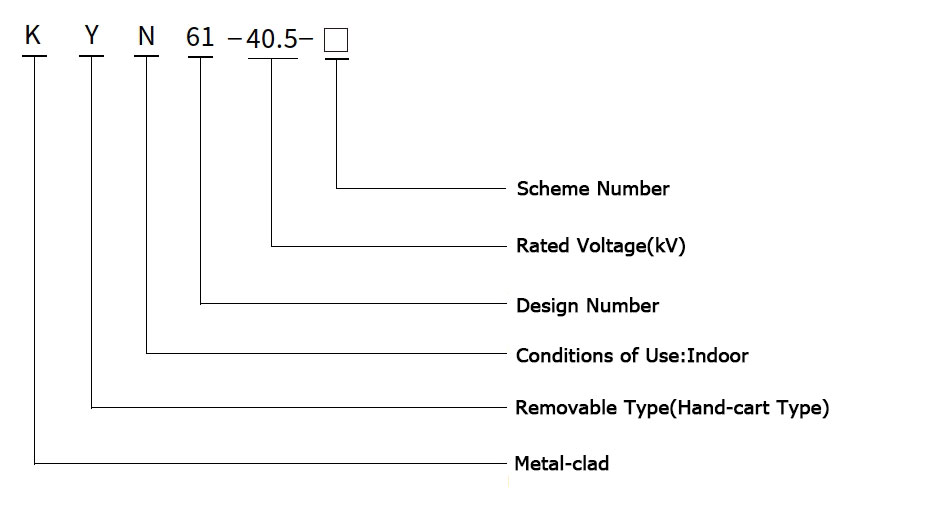

Model and meaning

kyn61-40.5-model



Technical Specification

ItemUnitParameter
Rated VoltagekV40.5
Rated CurrentA1250, 1600, 2000
Rated FrequencyHz50
Rated Short-time Withstand CurrentkA20, 25, 31.5
Rated Peak Withstand Current50, 63, 80
Rated Power Frequency Withstand CurrentkV95/min
Rated Lighting Impulse Withstand Current185
Rated Short Circuit Durations4
Protection ClassIP3X

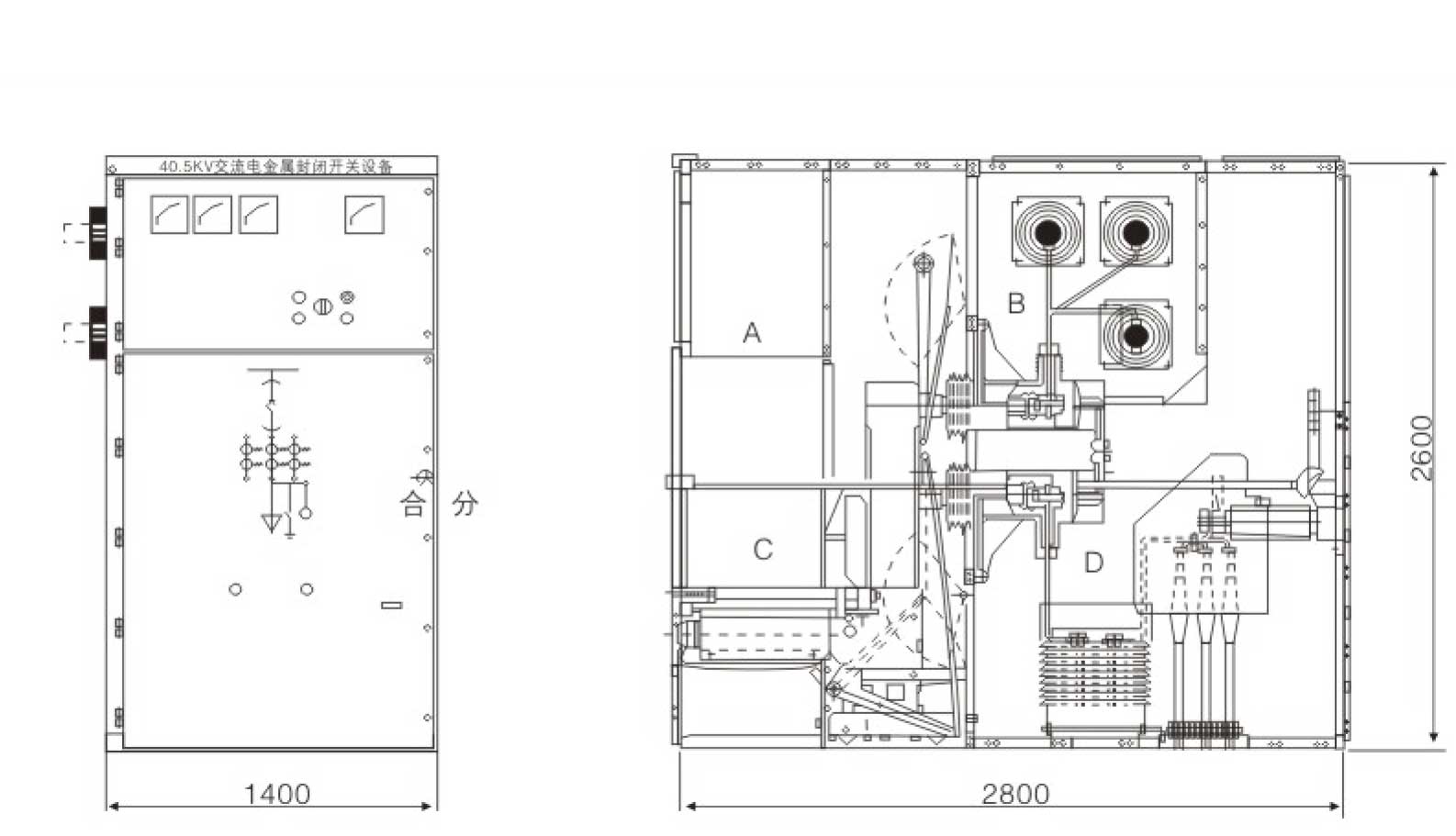

External Dimensions

kyn61-40.5-dimension

A:Relay Instrument Room

B:busbar room

C:circuit breaker chamber

D:cable room
