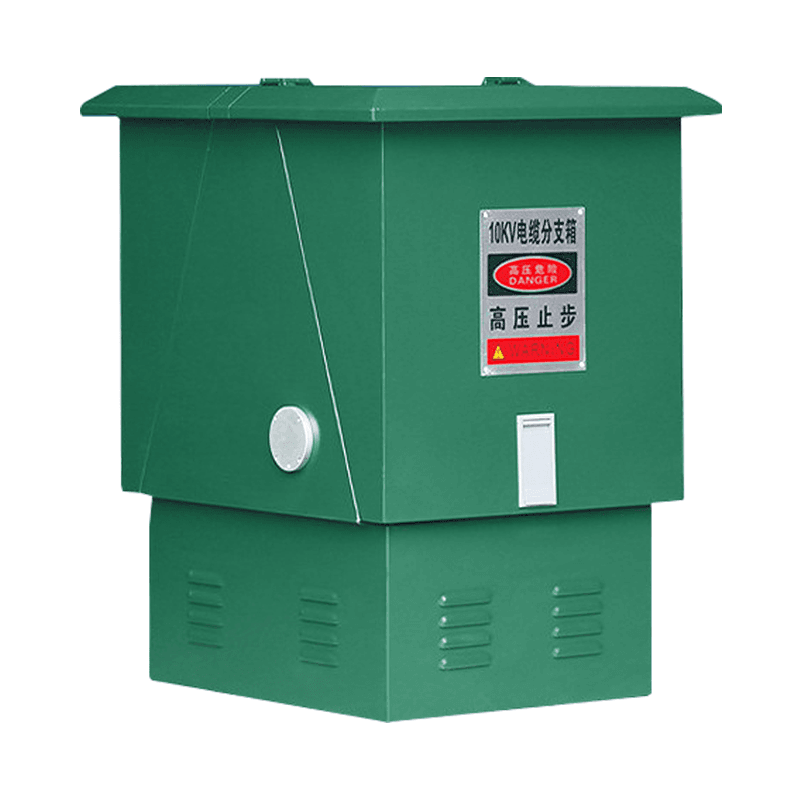

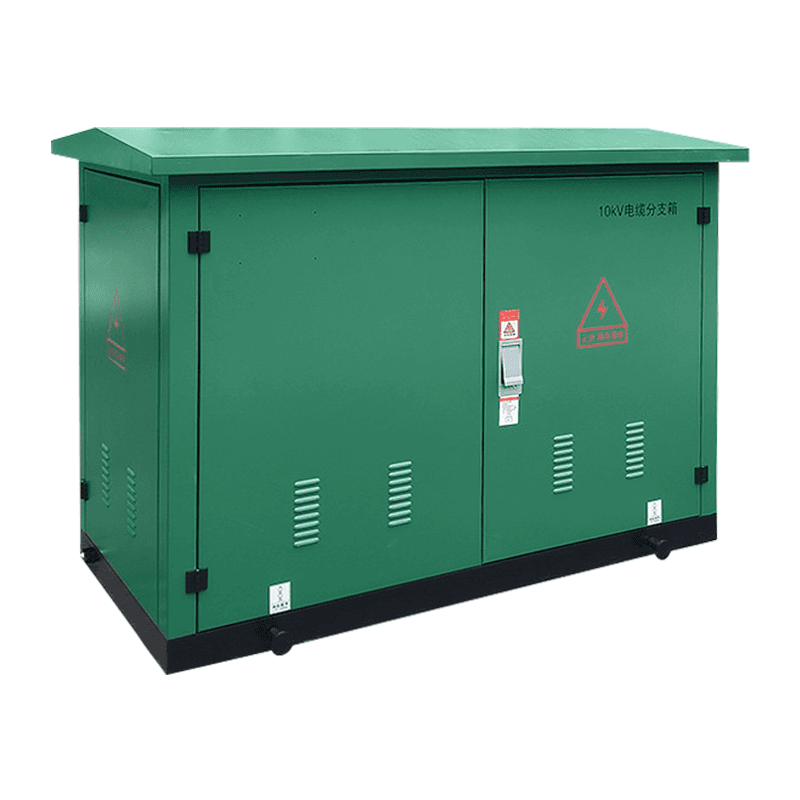

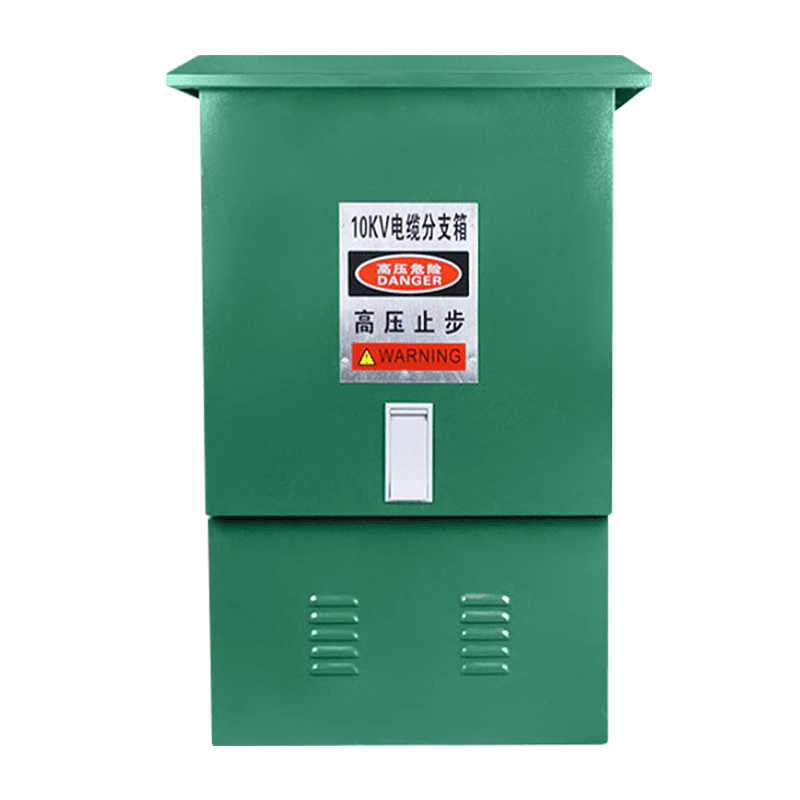

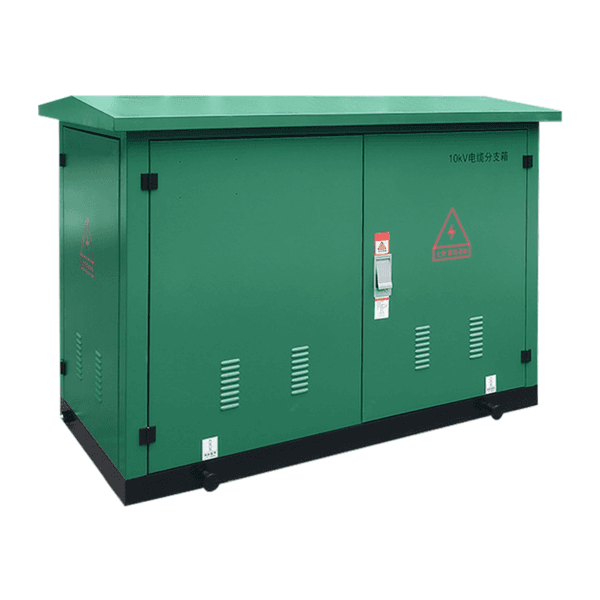

Medium Voltage Cable Branch Box

Medium voltage cable branch box is a type of electrical distribution box used in medium voltage power distribution systems. It is designed to branch off medium voltage power cables and distribute power to various loads.

Email to Us

Description

DFW cable branch box is designed for outdoor maintenance free operation, safe and reliable and its protection degree reaches IP33. The underground branch connector is anti-flood. It is widely used in urban industrial district, residential district, commercial center, mining area, large scale enterprises such as steel, automobile, petroleum, chemical industry, cement, and other occasions, It is particularly suitable for urban power grid reconstruction project, which can greatly save the investment of electrical equipment and cables, and improve the reliability of power supply.



Features

1. Small size, compact structure, easy to install and operate
2. Stainless steel or metal steel board ,which thickness ≥ 2mm
3. Anti-corrosion & with special Spray-painting artworks
4. Usage life more than 30 years.
5. It can be used in some harsh environments like high or lower temerature ,some dust area
6. Fully sealed structure,without insulation distance
7. Meidum voltage electric parts with cable connector or use silicon rubber for people safety.
8. With zno arrester
9. Its cables can be splitted into be 7 branches to work together with SF6 loading switches to reach net power-supplying.
10. The cable connector can be used as switch, it can be on or off with loading. The max on-off voltage can reach 200Amp.
11. After fix the fault indicator, user can test circuit fault very quickly
12. Cheaper cost ,save cable
13. Cable connectors comply with IEEE386 standard,all cables are suitable for crosslinking polyethylene insulated cables.

Technical Specification

No

 Item Unit

Data

1

 Rated voltage

kV

12kV

24kV

36kV

2

 Rated current

A

630

3

 Rated short-time withstand current

kA

20/3s

4

 Dynamic stable current

kA/0.3s

50

5

 Thermally stable current

kA/3s

20

6

 Power frequency withstand voltage/1min

kV

42

55

85

7

 Lightning impulse withstand voltage

kV

75/85

125/150

170/185

8

 Partial discharge test

Less than 9kV

Less than 15kV

Less than 45kV

Discharge amount: ≤10PC

Discharge amount: ≤10PC

Discharge amount: ≤10PC

9

 Enclosure protection class

IP44
