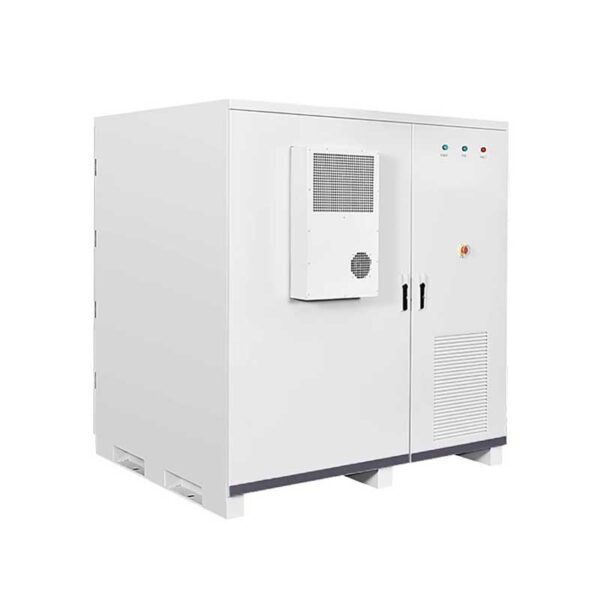

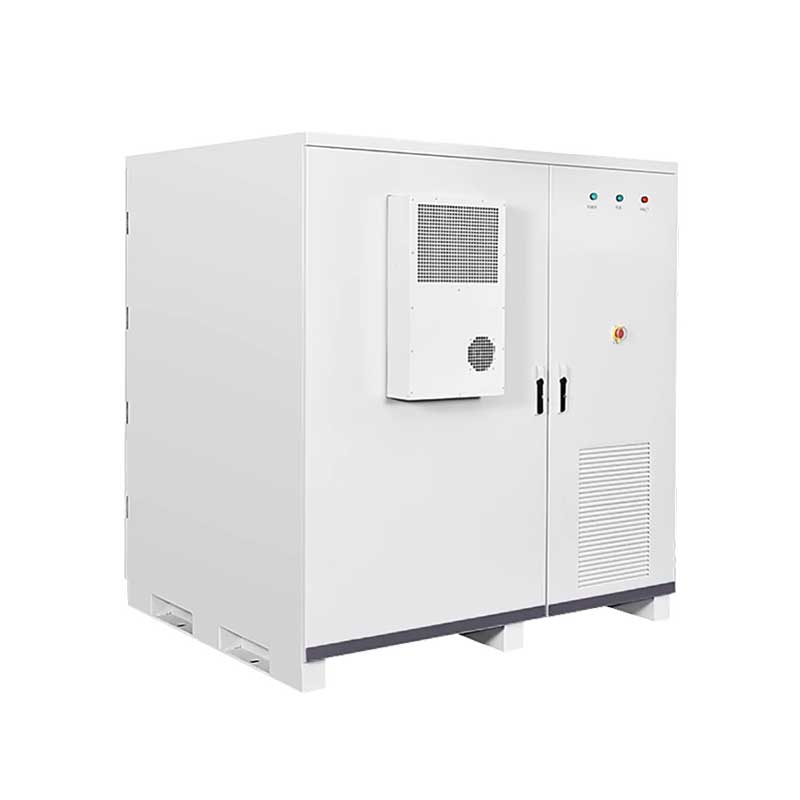

Photovoltaic Energy Storage Cabinet

Integrated PV Energy Storage Cabinet solutions—modular, easy to deploy, certified to international standards, supporting on/off-grid and peak-shaving applications with global delivery and support.

Get a Quote
Photovoltaic Energy Storage Cabinet.pdf

Technical Specification

Product ModelKGT30/70-ICAKGT30/90-ICAKGT30/120-ICA
Product Specifications30kW/70kWh30kW/90kWh30kW/120kWh
DC Side Parameters
Cell SpecificationsRuipu 100Ah
Battery TypeLFP
Battery Module Group Method2P16S
Battery Module Power10.24KWh
Number of Modules7912
Battery Cluster Power71.68kWh92.16kWh122.88kWh
Battery System Voltage Range313.6-403.2Vdc403.2-518.4Vdc537.6-691.2Vdc
Charge and Discharge Rate0.5C
AC Side Parameters
Rated Power30kW
Rated VoltageAC380V
Rated Frequency50Hz/60Hz
Maximum Charge and Discharge Power30kW
Isolation transformeroptional
System Parameters
Cooling MethodAir conditioning refrigeration
Noise Port<68dB
Protection ClassIP54
Altitude Requirements3000m
Ambient Temperature and Humidity0 – 95%(non-condensing) / -30°C – 55°C
Output Overload Port110%overload, 10min:120%overload , 1min
Communication ProtocolModbusRTU/ModbusTCP
Fire TypeHeptafluoropropane
System Cycle Life≥6000 Times
Size (L × W × H)1440 × 1100 × 2100 mm
Total System Weight1800kg
