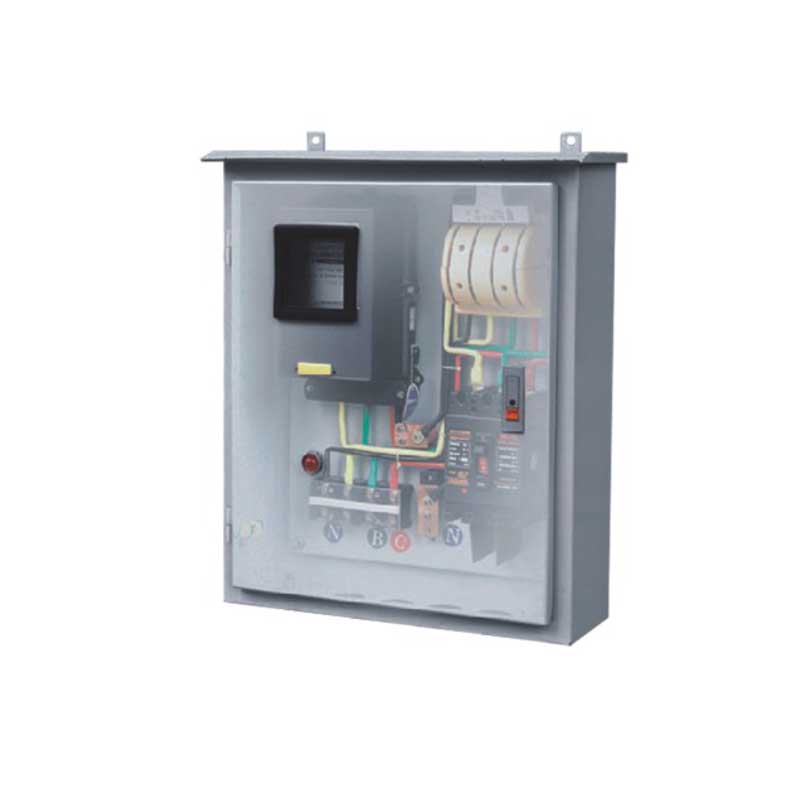

Overview
PZ30 lighting distribution box is suitable for frequency 50HZ, rated voltage 500V and below, load current is not greater than 100A single-phase and three-phase circuits, for power and lighting, motor control, overload, leakage and short circuit Road protection.
The box is designed reasonably, small in size, beautiful in appearance, safe and reliable to use, and cocoa is widely used in factories, large and medium-sized Buildings, residences, shopping malls and other places.
This product complies with GB7251.3 “Low-voltage switchgear and control equip-ment, Part 3: For non-professionals Low-voltage switchgear and control equipment with
site access – Particular requirements for switchboards.

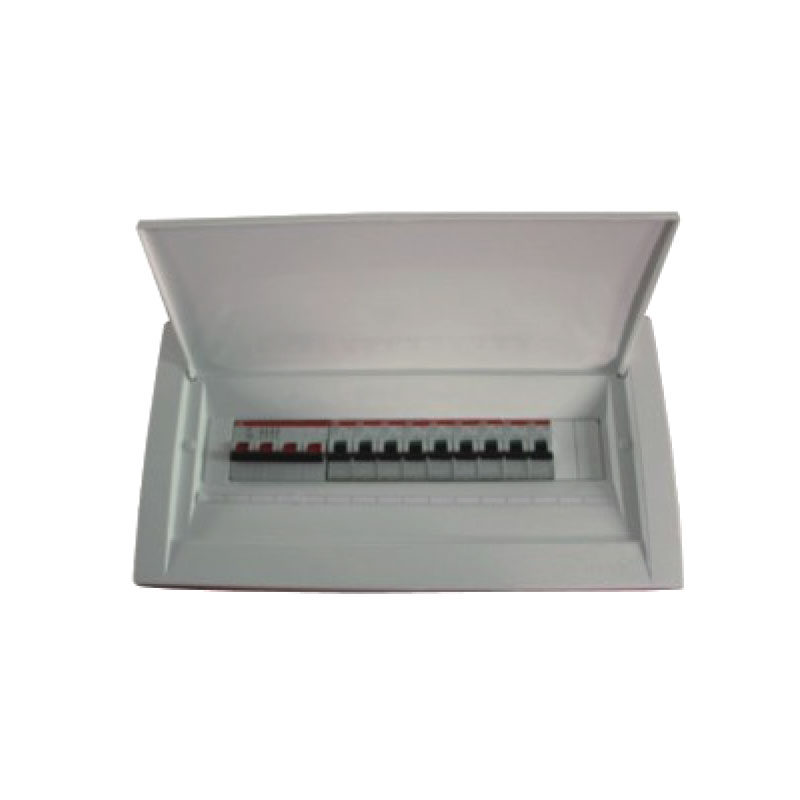

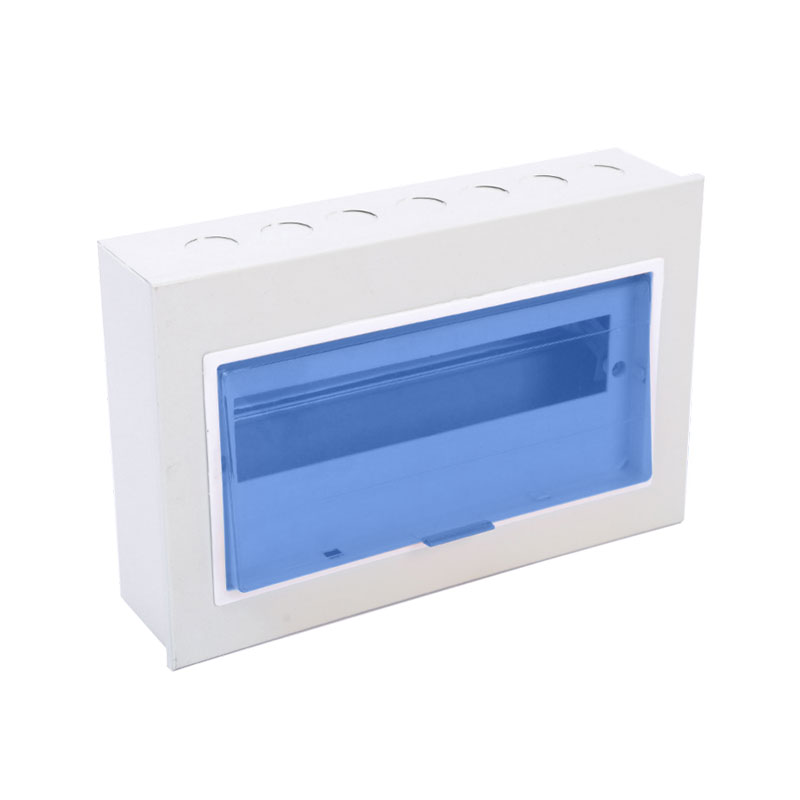

PZ30 lighting distribution box adopts 1.0mm thick high-quality steel plate. The shell is treated by high-voltage electrostatic spraying. With plastic transparent The face cover has a beautiful and generous appearance, and the upper and lower sides of the shell are punched with knock-off holes, making it convenient for users to enter and exit the line.
- Factory standard combination system with horizontal block structure; Each box design is novel and beautiful, standardized, and serialized;
- Lighting box single-phase three-phase can be used universally; single-pole, multi-pole, leakage can be combined arbitrarily;
- Rated current ≤ 100A, the shell protection level reaches IP3X;
- Ultra-thin structure is suitable for concealed installation and wall hanging installation of lightweight structural walls;
- Safe and reliable single-phase and three-phase comb busbar connection, and busbar in-sulation protective cover for higher safety and thermal stability Qualitative is better.
If you need detailed parameters, please check the pdf document above or contact us.
Operating Conditions
1.Ambient temperature: -25 ° C~ + 40 ° C
2.Ambient relative humidity: no more than 90% (20 ° C)
3.Altitude: no more than 2000m
4.A place free from severe vibration and shock
5.There is no explosive hazard, no gas and conductive dust in the medium that can cor-
rode metals and damage insulation.

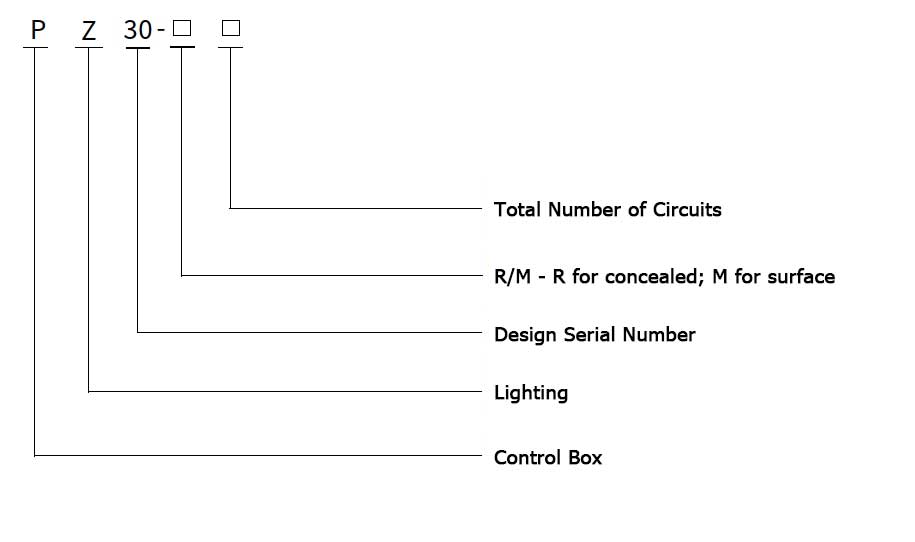

Model and meaning
Technical Specification
Steel door: single row, double row upward opening type
Distribution box rated current: 100A
Protection class: IP30

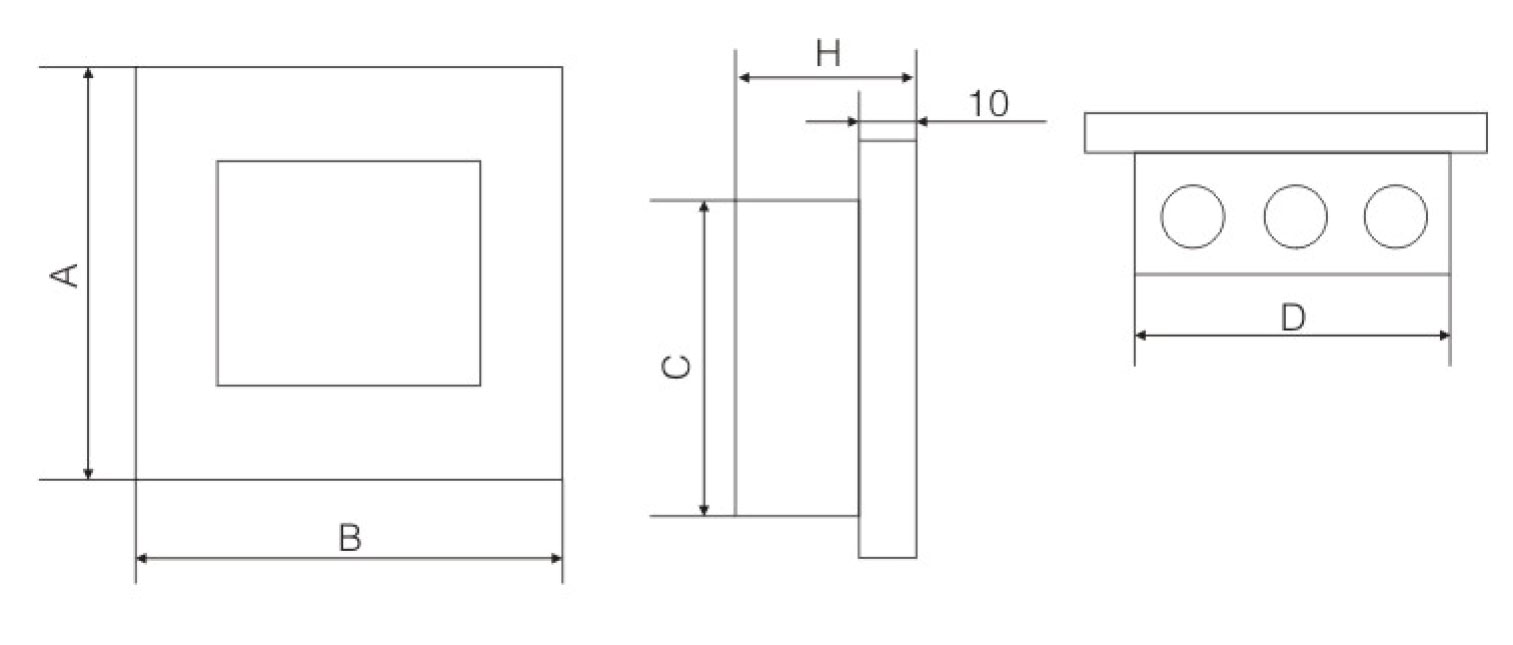

Appearance and installation dimensions
| Total Number of Circuits | A | B | C | D | H | Remarks |
| 4 | 175 | 165 | 155 | 135 | 80 | Single Row |
| 6 | 230 | 200 | 205 | 175 | 90 | |
| 10 | 300 | 300 | 265 | 265 | 90 | |
| 12 | 300 | 335 | 265 | 300 | 90 | |
| 15 | 300 | 390 | 265 | 355 | 90 | |
| 18 | 300 | 445 | 265 | 410 | 90 | |
| 20 | 500 | 300 | 465 | 265 | 90 | Double Row |
| 24 | 500 | 335 | 465 | 300 | 90 | |
| 30 | 500 | 390 | 465 | 355 | 90 | |
| 36 | 500 | 445 | 465 | 410 | 90 | |
| 45 | 600 | 390 | 585 | 355 | 90 | Three Rows |
