Overview

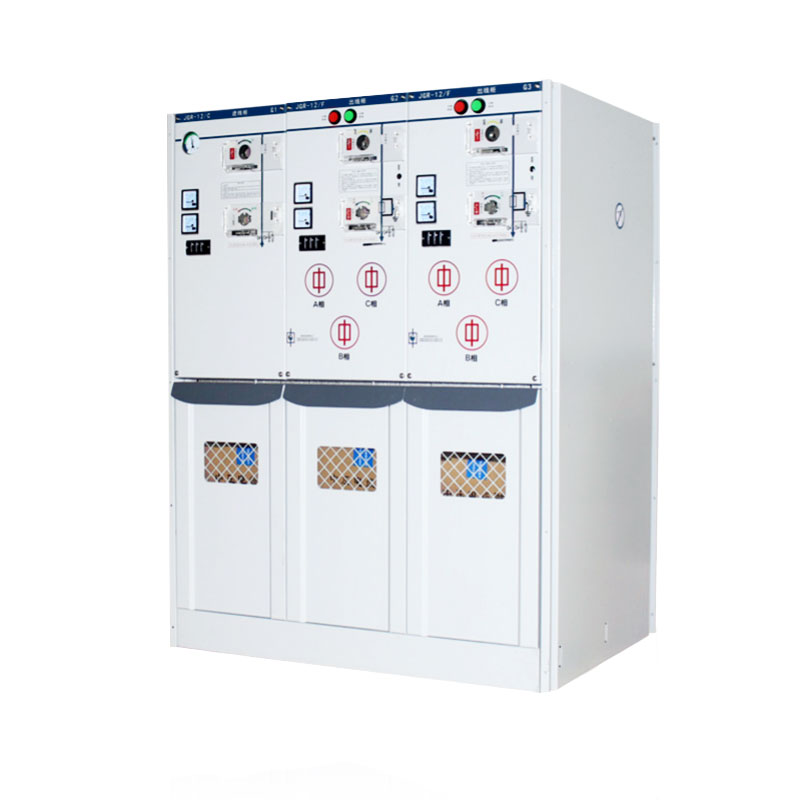

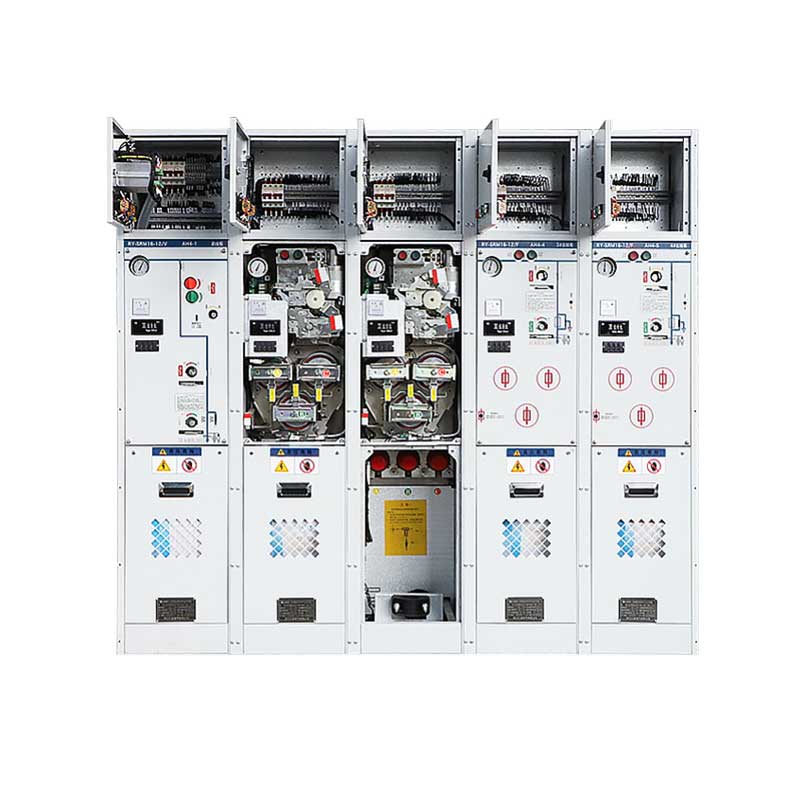

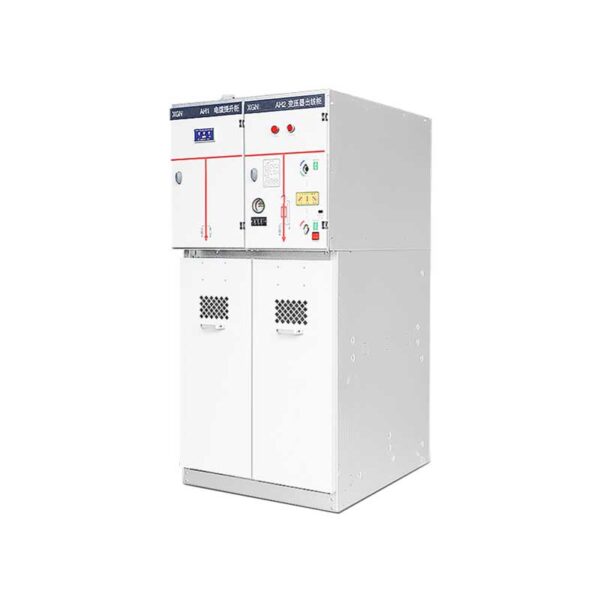

The XGN-12 Series gas-insulated switchgear has successfully obtained the type test report from the China High Voltage Electrical Appliance Test Center, and moreover, it has been recognized as a Zhejiang Provincial High-tech Product. Widely used in 10kV/20kV power distribution systems, it has become the preferred choice for switching and distribution applications across a broad range of urban and rural infrastructure projects.

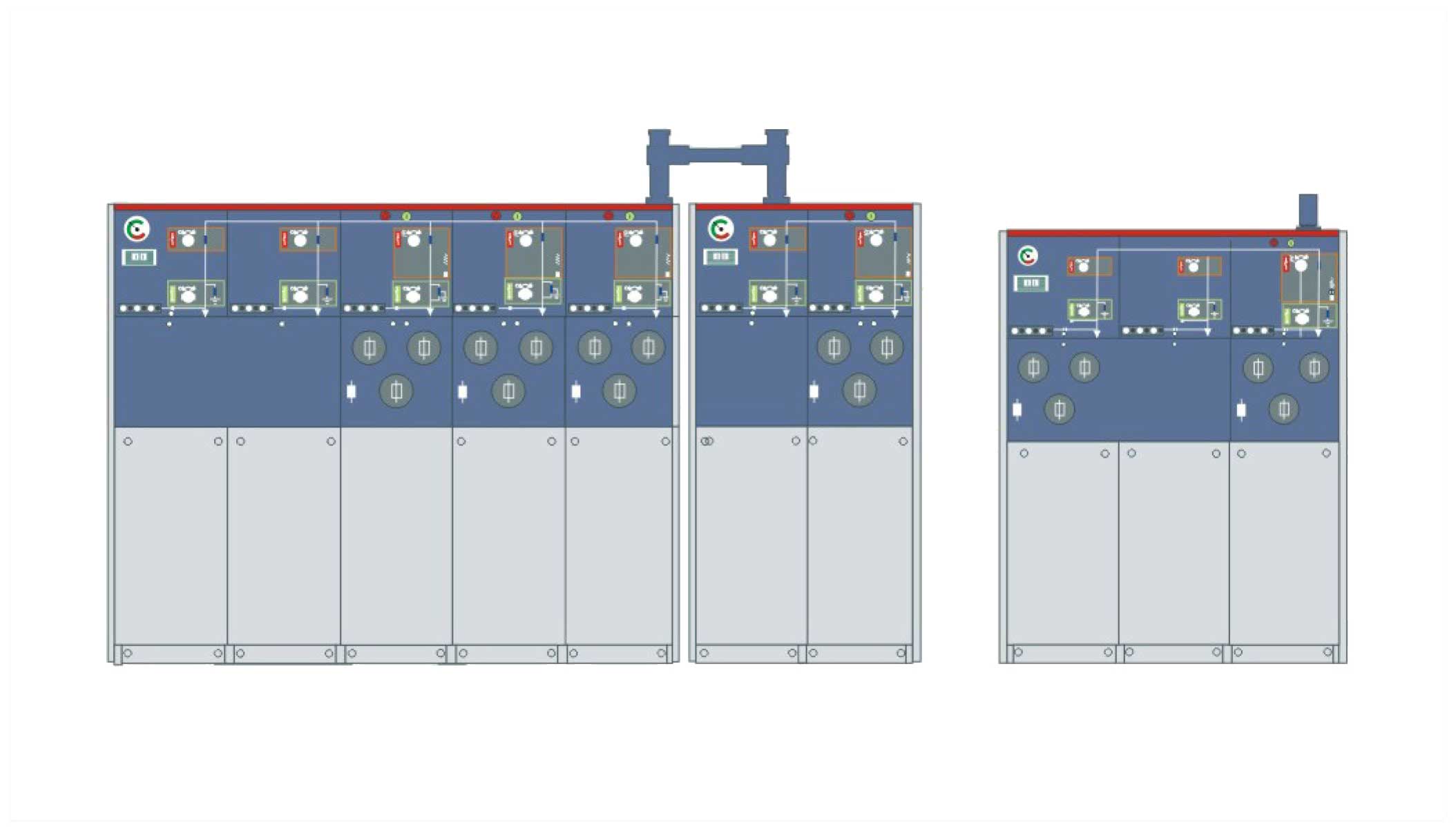

Designed with a modular unit structure, the switchgear allows flexible combinations according to different application needs. It is available in two main configurations: a fixed unit and an expandable unit, thereby enabling adaptable deployment in various compact substation environments.
If you need more information, please view the pdf document above or contact us.
Operating Conditions
1. Ambient temperature: -50℃ ~+40℃;
2. Altitude: 2000m;
3. Relative humidity: maxmium average 95%;
Technical Specification
| Unit | Module C | Module F | ModuleV | Module CB | |||
| Load Switch | Combination Appliance | Vacuum Switch | Isolation/Grounding Switch | VCB | Isolation/Grounding Switch | ||
| Rated Voltage | kV | 12 | |||||
| Rated Frequency | Hz | 50 | |||||
| Power Frequency Withstand Voltage (phase to phase/fracture) | kV | 42/48 | |||||
| Lightning Impulse Withstand Voltage | 75/85 | ||||||
| Rated Current | A | 630 | 630 | 1205/630 | |||
| Rated Closed-Loop Breaking Current | 630 | ||||||
| Rated Cable Charging Breaking Current | 10 | ||||||
| Rated Short-Circuit Closing Current (peak) | 50 | 80 | |||||
| Rated Peak Withstand Current | kA | 50 | |||||
| Rated Short-Time Withstand Current | kA/35 | 20 | |||||
| Rated Short Circuit Breaking Current | kA | 31.5 | 20 | 25 | |||
| Rated Transfer Current | A | 1700 | |||||
| Equipped With Fuse Maximum Current | 125 | ||||||
| Loop Resistance | -n | ≤300 | ≤600 | ||||
| Mechanical Life | Times | 5000 | 3000 | 5000 | 2000 | 5000 | 5000 |
