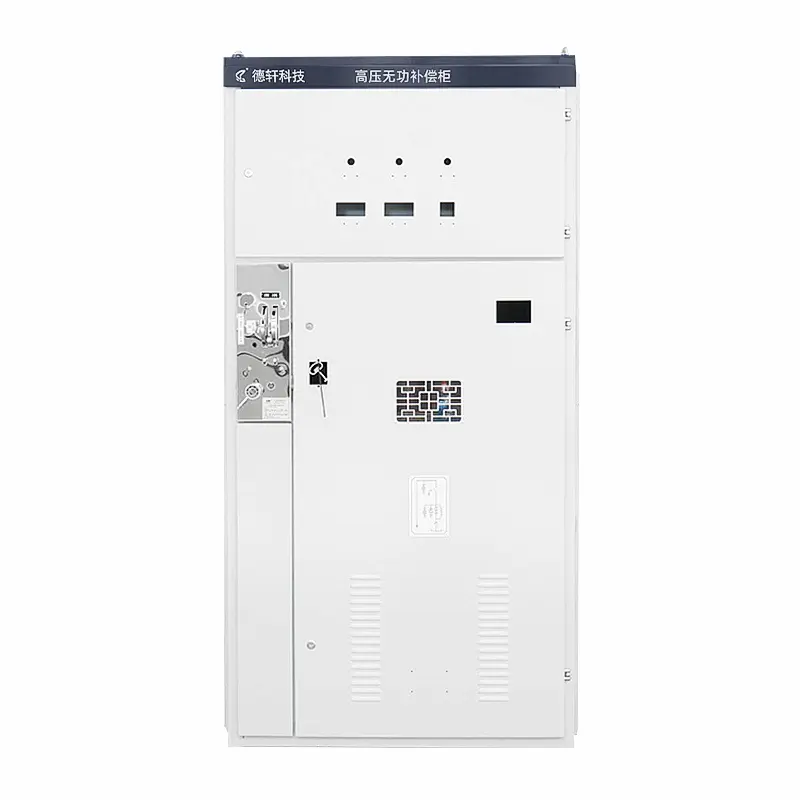

SVG Reactive Power Compensation Cabinet

Overview

SVG Reactive Power Compensation Cabinet, also known as Static Var Generator Cabinet, is an advanced dynamic reactive power compensation solution based on power electronic technology. It is designed to improve power factor, reduce reactive power losses, and enhance overall power quality.
Using IGBT power modules and digital control technology, the SVG system continuously monitors grid conditions and generates compensating currents according to load variations. It provides fast and accurate reactive power adjustment with better performance compared with traditional capacitor-based compensation equipment.
The SVG reactive power compensation cabinet is widely used in industrial facilities, renewable energy systems, mining, metallurgy, petrochemical plants, rail transit, and other power networks requiring stable and efficient power quality management.

Operating Conditions

1. Ambient temperature: -10℃ to +40℃;

2. Altitude: ≤1000m;

3. Humidity: ≤90%, without condensation;

4. Installation location: Indoor electrical rooms with proper ventilation;

5. Environment: Free from severe dust, corrosive gases, and strong vibration.

Features

Fast Dynamic Response

With advanced control algorithms, SVG provides millisecond-level response speed and quickly follows load variations, making it ideal for fluctuating and impact loads.

Precise Reactive Power Compensation

The SVG system provides continuous adjustment of compensation capacity, ensuring stable power factor correction without step switching limitations of traditional capacitor banks.

Improved Power Quality

Besides reactive power compensation, SVG helps reduce current fluctuations, enhance system stability, and improve power quality on the user side.

Suitable for Complex Loads

SVG is suitable for nonlinear and rapidly changing loads such as electric arc furnaces, welding machines, rolling mills, lifting equipment, and photovoltaic systems.

Modular Structure

The modular structure allows easy expansion, maintenance, and replacement, improving system reliability and service efficiency.

Applications

SVG reactive power compensation cabinets are widely applied in:

• Solar power plants and renewable energy systems
• Industrial automation facilities
• Steel and metallurgy industries
• Mining power systems
• Petrochemical projects
• Data centers
• Rail transit systems
• Large commercial buildings
