Metal-clad switchgear is an important part of modern power distribution systems. It is designed to receive, distribute, control, protect, and monitor electrical power in industrial, commercial, and utility applications. Its metal-enclosed construction provides mechanical protection for internal electrical components and helps separate energized parts from the surrounding environment.

Metal-clad switchgear is commonly used in medium- and high-voltage systems where reliable switching, protection, and safe maintenance are required. Depending on the design, it can incorporate circuit breakers, disconnecting devices, grounding switches, instrument transformers, protection relays, and other electrical components.

---

What Is Metal-Clad Switchgear?

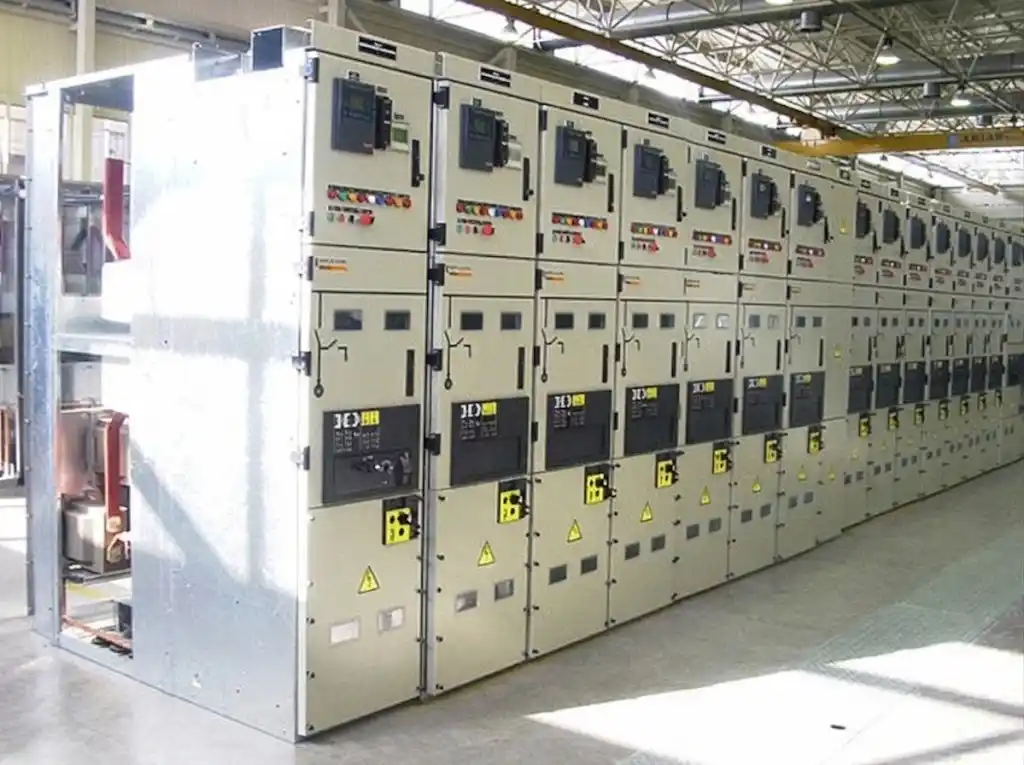

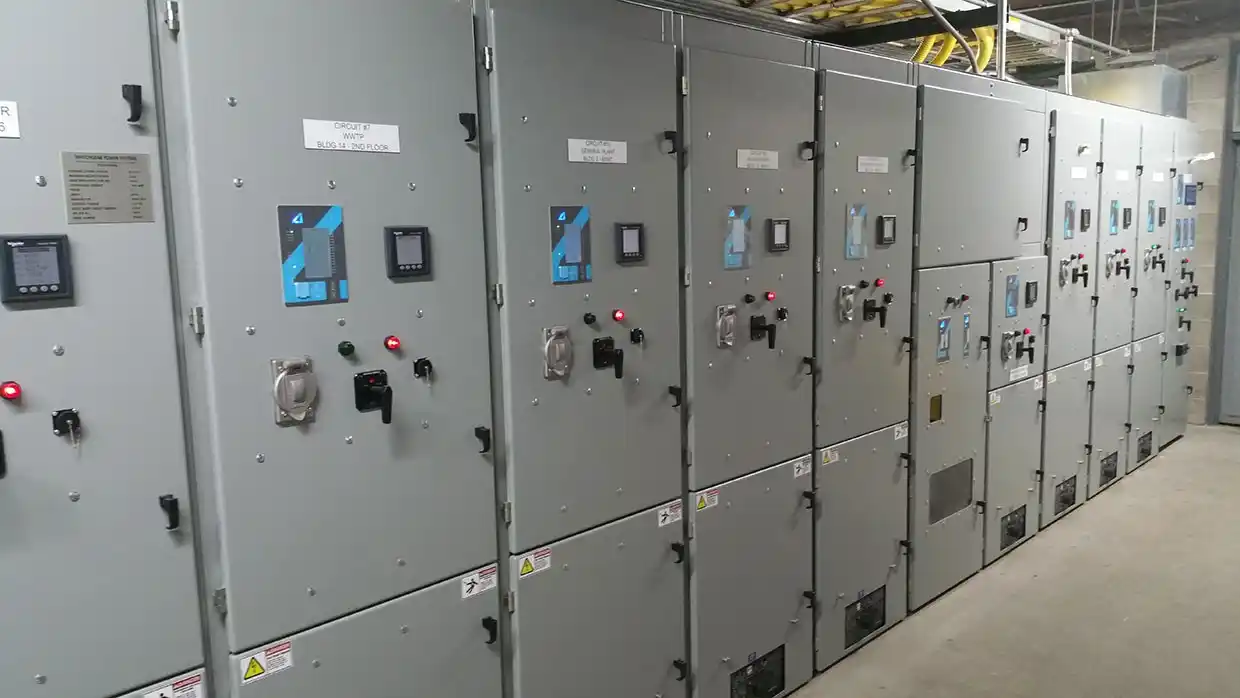

Metal-clad switchgear is a metal-enclosed switchgear assembly designed to provide controlled power distribution and protection for electrical systems. Its internal components are arranged in separate compartments, with barriers and insulation designed to limit access to energized parts and help contain electrical faults.

A key feature of many metal-clad switchgear designs is the withdrawable circuit breaker. The breaker can be moved between operating, test, and disconnected positions, making inspection, testing, and maintenance more convenient while maintaining the required safety interlocks.

The compartmentalized structure typically separates major functional areas such as the circuit breaker, busbars, cable connections, and low-voltage control components. This arrangement helps improve operational safety, simplify maintenance, and reduce the potential impact of an internal fault on adjacent equipment.

---

Fixed-Mounted vs. Withdrawable Switchgear

Metal-clad switchgear can generally be configured with fixed-mounted or withdrawable components. Both designs provide switching, protection, and power distribution functions, but they differ in how major components are installed, operated, and maintained.

Fixed-Mounted Switchgear

In a fixed-mounted design, the main switching equipment is permanently installed inside the switchgear compartment. Routine inspection and maintenance are normally carried out in position, while replacement may require additional disassembly and isolation work.

Fixed-mounted configurations are suitable for installations where a simpler equipment arrangement and lower initial complexity are important. They can be used in industrial facilities, commercial buildings, utility distribution systems, and other medium-voltage applications.

Withdrawable Switchgear

Withdrawable switchgear uses a movable truck or carriage to allow equipment such as a vacuum circuit breaker to move between service, test, and disconnected positions. This arrangement makes inspection, testing, replacement, and maintenance more convenient.

Because the circuit breaker can be withdrawn without removing the complete switchgear enclosure, this design can help reduce maintenance time and simplify equipment servicing. Withdrawable configurations are widely used in industrial plants, substations, commercial facilities, and other applications where operational flexibility and maintainability are important.

---

Core Features of Metal-Clad Switchgear

Metal-clad switchgear combines electrical protection, switching, and compartmentalized construction in a single assembly. Its main features include:

• Enhanced Safety: A grounded metal enclosure and separated compartments help protect personnel from energized components and limit the effects of internal electrical faults.
• Convenient Maintenance: Withdrawable circuit breakers and accessible compartments can simplify inspection, testing, replacement, and routine servicing.
• Flexible Configuration: Switchgear can be configured with different protection, control, metering, and communication functions to meet specific project requirements.
• Reliable Operation: Properly designed and maintained metal-clad switchgear provides dependable switching and protection for medium- and high-voltage power distribution systems.
• Operational Interlocking: Mechanical and electrical interlocks help prevent incorrect switching operations and improve the safety of equipment operation.

Depending on the application, metal-clad switchgear may also incorporate protection relays, ground-fault protection, metering equipment, remote monitoring, and communication functions.

Applications of Metal-Clad Switchgear

Metal-clad switchgear is used across a wide range of power distribution and industrial applications where controlled switching, electrical protection, and safe maintenance are required. Common applications include:

• Power Generation: Used to control and protect generator or auxiliary power circuits before electricity is transferred to the transmission or distribution system.
• Electrical Substations: Installed in medium- and high-voltage distribution sections for switching, protection, isolation, and power distribution.
• Industrial Facilities: Supplies and protects electrical equipment, production lines, motors, and other industrial loads.
• Commercial Buildings: Used for distributing power to building services such as HVAC systems, elevators, lighting, and other electrical loads.
• Mining and Heavy Industry: Suitable for power distribution and motor control in demanding industrial environments.
• Hospitals and Data Centers: Supports reliable power distribution and protection in facilities where electrical continuity and controlled maintenance are important.

With appropriate ratings, protection settings, and maintenance practices, metal-clad switchgear can provide

---

Conclusion: Metal-Clad Switchgear

Metal-clad switchgear provides a practical solution for medium- and high-voltage power distribution where safety, reliable switching, and convenient maintenance are important. Its metal-enclosed construction, compartmentalized layout, and flexible configuration help meet the protection and operational requirements of different electrical systems.

For new installations, facility expansions, or switchgear replacement projects, the appropriate configuration should be selected according to system voltage, load requirements, short-circuit conditions, protection functions, installation environment, and maintenance requirements.

Working with an experienced switchgear manufacturer can also help ensure that the equipment configuration, protection scheme, and technical specifications are properly matched to the project.

---
